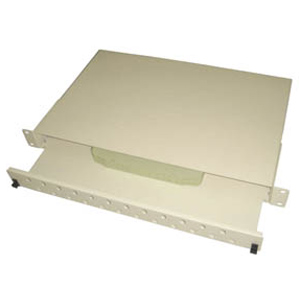

18A-4UXXIVXX-1
FIBER RACK MOUNTED PATCH PANEL,
ADAPTOR UNLOADED.
XX=12; 24; 36; 48
12 - DIMENSION:
            1.75"*19"*11"(44.5*482*280mm )
       PANEL GATE: 2*ADAPTOR PANEL
       PANEL SIZE: 428*44.5mm
       ACCESSORY:
            1*ROUTING
            1*SPLICING TRAY
       MATERIAL: SPCC
       THICKNESS: 1.2mm
       FINISHED: PAINTING


24 - DIMENSION:
            1.75"*19"*11"(44.5*482*280mm )
         PANEL GATE:
             NO ADAPTOR PANEL CAN BE CHANGED
         PANEL SIZE:
             APPLY WITH 130*29mm PANEL
         ACCESSORY:
             2*ROUTING AND SPLICING TRAY
         MATERIAL: SPCC
         THICKNESS: 1.2mm
         FINISHED: PAINTING

36 - DIMENSION:
           3.4"*19"*11"(89.7*482*280mm )
       PANEL GATE:
           6*ADAPTOR PANEL
       PANEL SIZE:
           APPLY WITH 99*37mm PANEL
       ACCESSORY:
           3*ROUTING AND SPLICING TRAY
       MATERIAL: SPCC
       THICKNESS: 1.2mm
       FINISHED: PAINTING


48 - DIMENSION:
           3.4"*19"*11"(89.7*482*280mm )
        PANEL GATE:
           8*ADAPTOR PANEL
        PANEL SIZE:
           APPLY WITH 160*25.5mm PANEL
        ACCESSORY:
           4*ROUTING AND SPLICING TRAY
        MATERIAL: SPCC
        THICKNESS: 1.2mm
        FINISHED: PAINTING


XX= ADAPTOR TYPE -
       01 - ST ADAPTOR
       04 - FC ADAPTOR
       07 - SC ADAPTOR, SIMPLEX
       08 - SC ADAPTOR, DUPLEX
       14 - LC ADAPTOR, DUPLEX, SQUARE TYPE
       15 - LC ADAPTOR, SIMPLEX
       16 - LC ADAPTOR, DUPLEX (SC FOOTPRINT),
              MTRJ
